Part No.: 1837

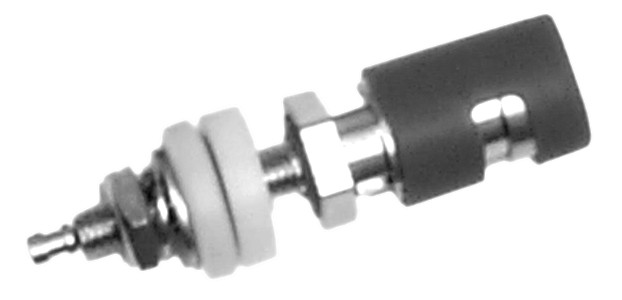

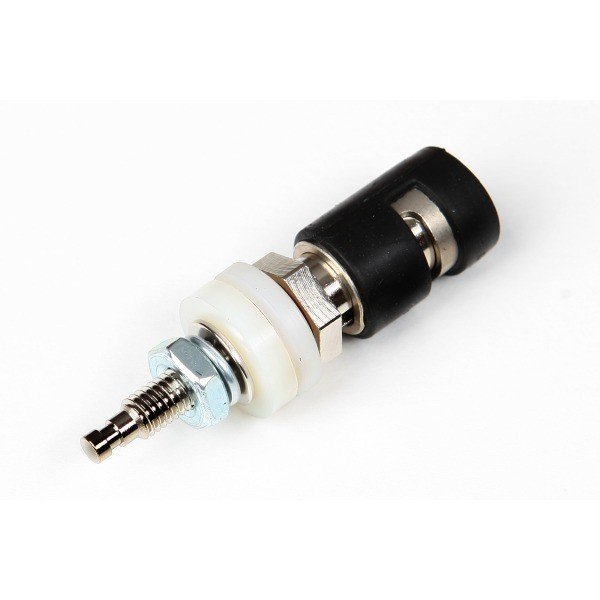

Spring Loaded Binding Post



  • ML-P-55149/8 commercial version, this heavy duty, water proof post is meant for rugged applications.
  • Body is nickel plated brass.
  • Insulated washers are modled nylon.  Cap is silicon rubber, as are "O" ring waterproof seals for panel.
  • Body mounts into 5/16" hole in panel from 1/16" to 1/8" thick.
  • Spring loaded push cap tightly grips wire in side slot.
  • To connect circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
  • Avaliable in red (-103, MIL Spec Type PB 08NA02) or black (-103, MIL Spec Type PB 08NA01).
