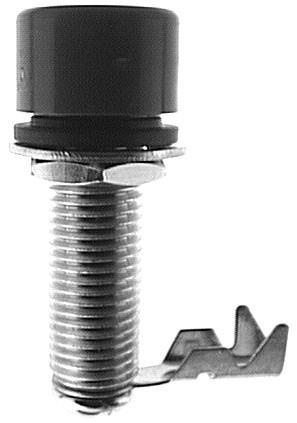

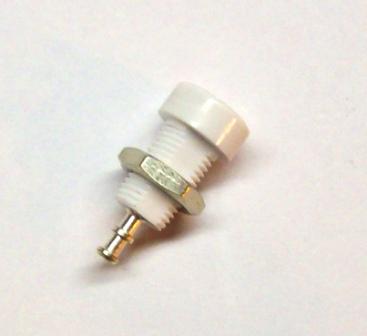

Insulated Banana Jacks

  • Metal body jacks re nickel plated brass.

  • Jacks mount and are insulated from panel in 5-16" holes.  Metal body jacks can be condutive-to-panel mounted in 1/4" holes. All are held with nut supplied.

  • Available in red (-102) and black (-103) as standard, call factory for other colors.

  • Wire wraps and solders around turret or throguh hole in interior contact.  Wire can be soldered to lug supplied on metal body jackds.

  • Rated at 15 Amps AC for 10 degeee C temperature rise, continuous duty.  Voltage 1KVAC.
