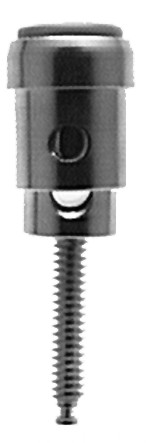

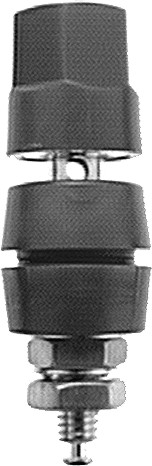

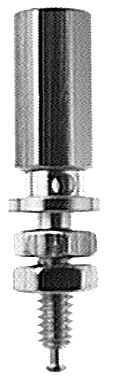

Binding Posts

A binding post is a versatile connector that allows a temporary or semi-permanent connection between electronic devices or circuits. Binding Post Ratings:

• All current ratings are 60 Hxz RMS and are 10°C temperature rise over ambient, long term.
• Voltage ratings are 60 Hz at sea level.
• Capacitance is to a 1/8" aluminum panel, component mounted as receommended.
• All ratings are working and do not represent maximum values.

STUD SIZE	CURRENT	VOLTAGE	CAPACITANCE
#4	5 AMPS	1 KV	2.5 pF
#6	15 AMPS	1 KV	3 pF
#8	15 AMPS	1 KV	4.5 pF
#10	30 AMPS	2 KV	5 pF
