Spring Loaded Binding Posts

Quick and secure wire connection is assured with these spring loaded binding posts.
heads and bodies are brass with plated finish as indicated above. Insulated caps on heads are available in red (-102) and black (-103) or for the Dual posts, a combination (RR, RB, BB). Please add color as suffix to part number.
Posts mount in #6 holes. Dual posts require standard 3/4" centers.
Use with phone tip plug up to 1/8" diameter or connect to wire up to #12 AWG.
To connect circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).

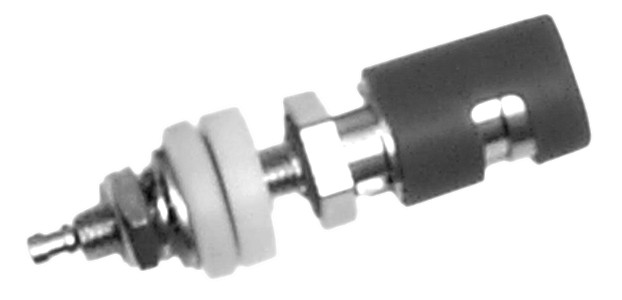

Spring Loaded Binding Post

Spring Loaded Binding Post

Spring Loaded Binding Post

Spring Loaded Binding Post

Spring Loaded Binding Post

Spring Loaded Binding Post

Spring Loaded Binding Post

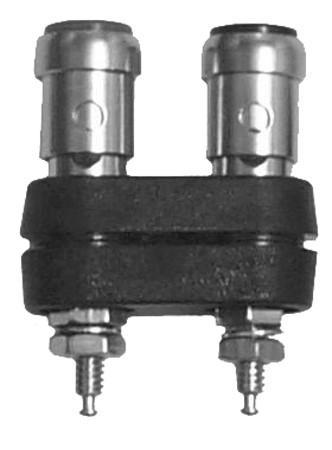

Part No.: 2713BB

Spring Loaded Binding Post

Part No.: 2713RB

Spring Loaded Binding Post

Part No.: 2713RR

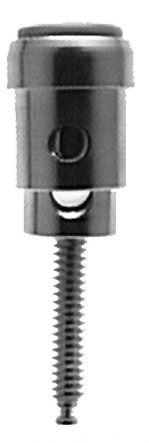

Top Loading Binding Post
