Part No.: 2713RB

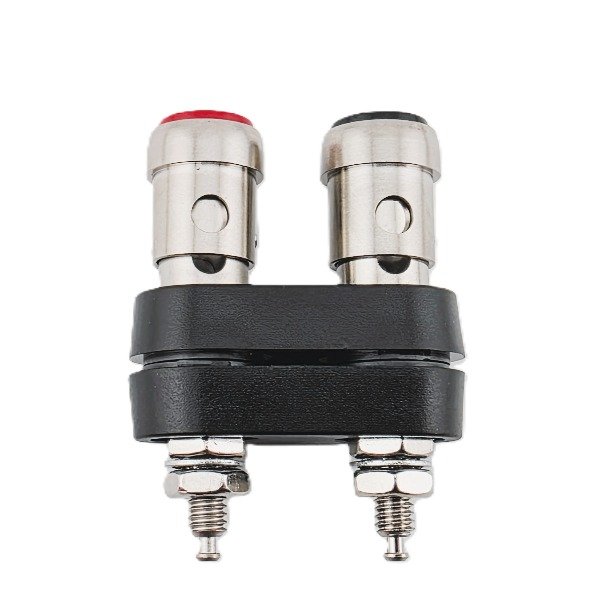

Spring Loaded Binding Post

This product is certified RoHS compliant.

Quick and secure wire connection is assured with these spring loaded binding posts.
Heads and bodies are brass with plated finish as indicated. Insulated caps on heads are available in read (-102) or black (-103) or for the Dual posts, a combination (RR, RB, BB). Please add color as suffix to part number.
To connect to circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
Stud length: 1/16 Min, 9/32 Max panel thickness
