Part No.: 2713RR

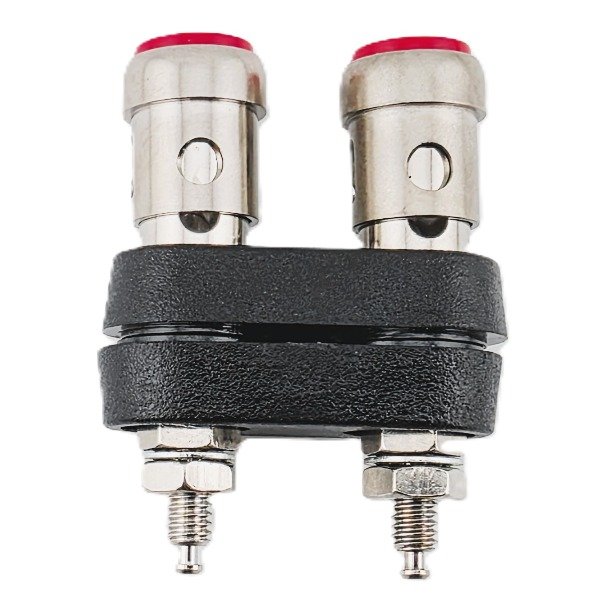

Spring Loaded Binding Post

This product is certified RoHS compliant.

  • Quick and secure wire connection is assured with these spring loaded binding posts.
  • Heads and bodies are brass with plated finish as indicated.  Insulated caps on heads are available in read (-102) or black (-103) or for the Dual posts, a combination (RR, RB, BB).  Please add color as suffix to part number.
  • To connect to circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
  • Stud length:  1/16 Min, 9/32 Max panel thickness
