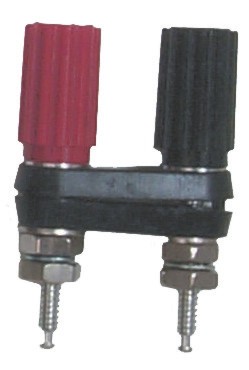

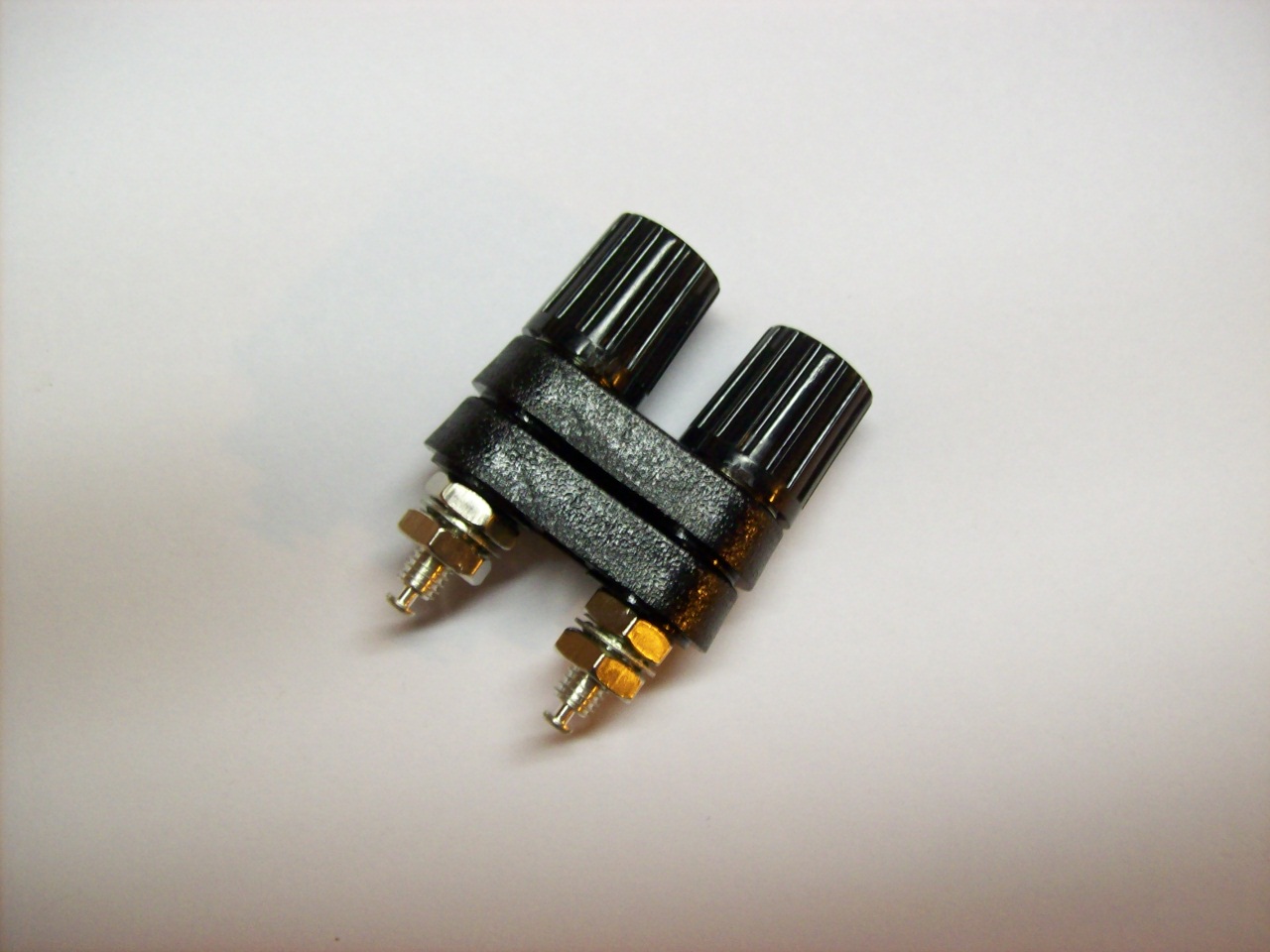

Dual Binding Posts

  • Fluted or hex insulated post heads are molded Lexan polycarbonate. Captivated to prevent loss.
  • Body is brass with tin plating.
  • Insulated washers are molded polycarbonate and completely insulate post from panel. Keyed to panel and body to prevent rotation.
  • Body mounts into dual holes with 3/4" centers.
  • Connects with .080" phone tip plug, 1/4" spade lug, standard banana plug, alligator clip, wire (10 #14) and shorting links.
  • To connect circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
  • All posts shown are available as black, red or red and black.
