Part No.: 1814RB

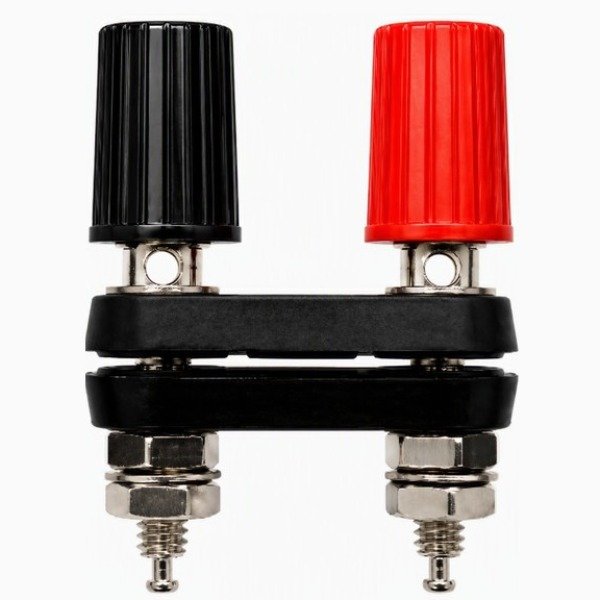

Dual Binding Post

This product is certified RoHS compliant.

  • Fluted or hex insulated post heads are molded Lexan popycarbonate.  Captivated to prevent loss.
  • Body is brass with tin plating.
  • Insulated washers are molded polycarbonate and completely insulate post from panel.  Keyed to panel and boy to prevent rotation.
  • Body mounts into dual holes with 3/4" centers.
  • Connects with .080" phone tip plug, 1/4" spade lug, standard banana plug, alligator clip, wire (to #14), and shorting links.
  • To connect circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
  • All dual binding posts are offered in red/black, red/red, or black/black head color combinations.
