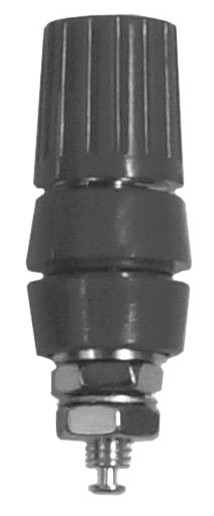

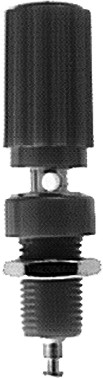

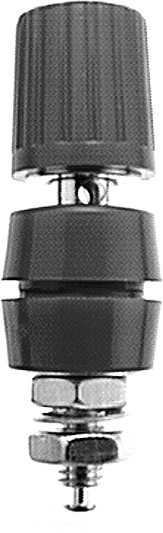

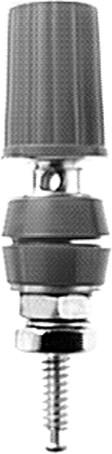

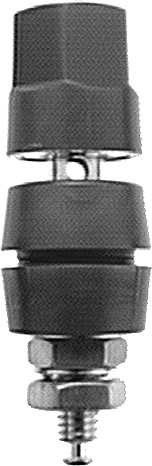

Insulated Binding Posts

  • Post head is molded Lexan polycarbonate.  Captivated to prevent loss.
  • Body is brass with plating as indicated.
  • Insulated washers are moded polycarbonate and completely insulate post from panel.  keyed to panel and body to prevent rotation.
  • Body mounts in 3/8" or 1/2" round or "D" hole for anti-rotation (see diagrams).
  • Connects with .080" phone tip plug, 1/4" spade lug, standard banana plug, alligator clip or wire (to #14).
  • To connect circuit, wrap wire around solder turret or attach to solder lug between nuts (lug not supplied).
  • Avaialble in standard red (-102) and black (-103).  Other colors avialable from factory.  Please add color to part number as suffix.
