Part No.: 1514

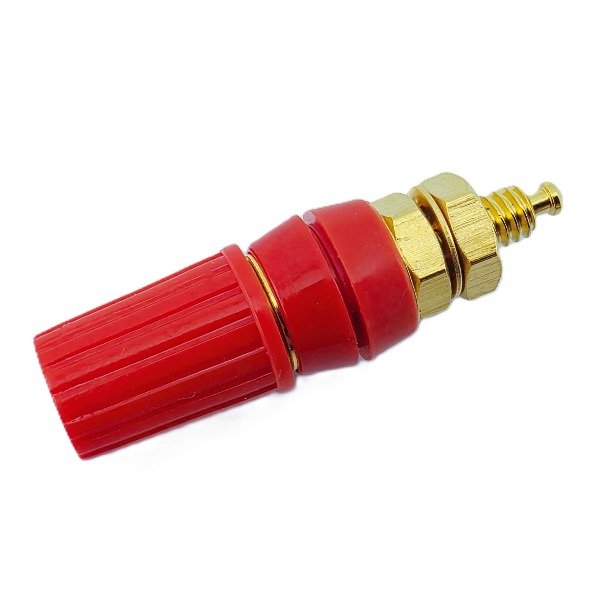

Insulated Binding Post


  • Post head is molded Lexan polycarbonate, fluted. Captivated to prevent loss.
  • Body is brass with gold pating.
  • Insulated washers are molded polycarbonate and completely insulate post from panel.  Keyed to panel and body to prevent rotation.
  • Body mounts in 3/8" "D" hole for anti-rotation.
  • Connect with .080" phone tip plug, 1/4" spade lug, standard banana plug, alligator clip, or wire (to #14).
  • To connect circuit, wrap wire around solder turret ro attach to solder lug between the nuts (lug not supplied).
  • Available in standard red (.102_ and black (.103).  Other colors are availabel from factory.  Please add color to part number as suffix.
