Part No.: 1416-08

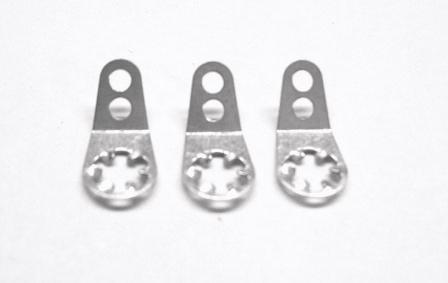

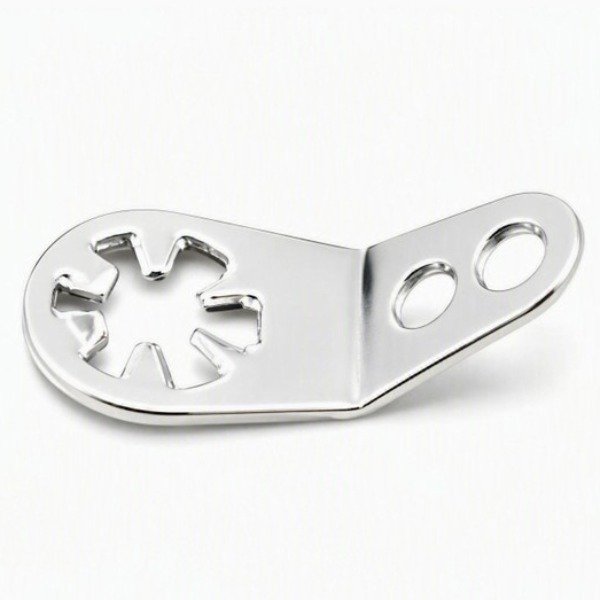

Solder Lug

Product Specifications
Length:	41/64
Thickness:	.018
O.D.:	5/16
Width:	3/16
Hole:	3/32 (is incorrect on attached drawing, should be .09375", not .069")
Center:	1/4
Stud Size:	8
